Torque Testing Machine

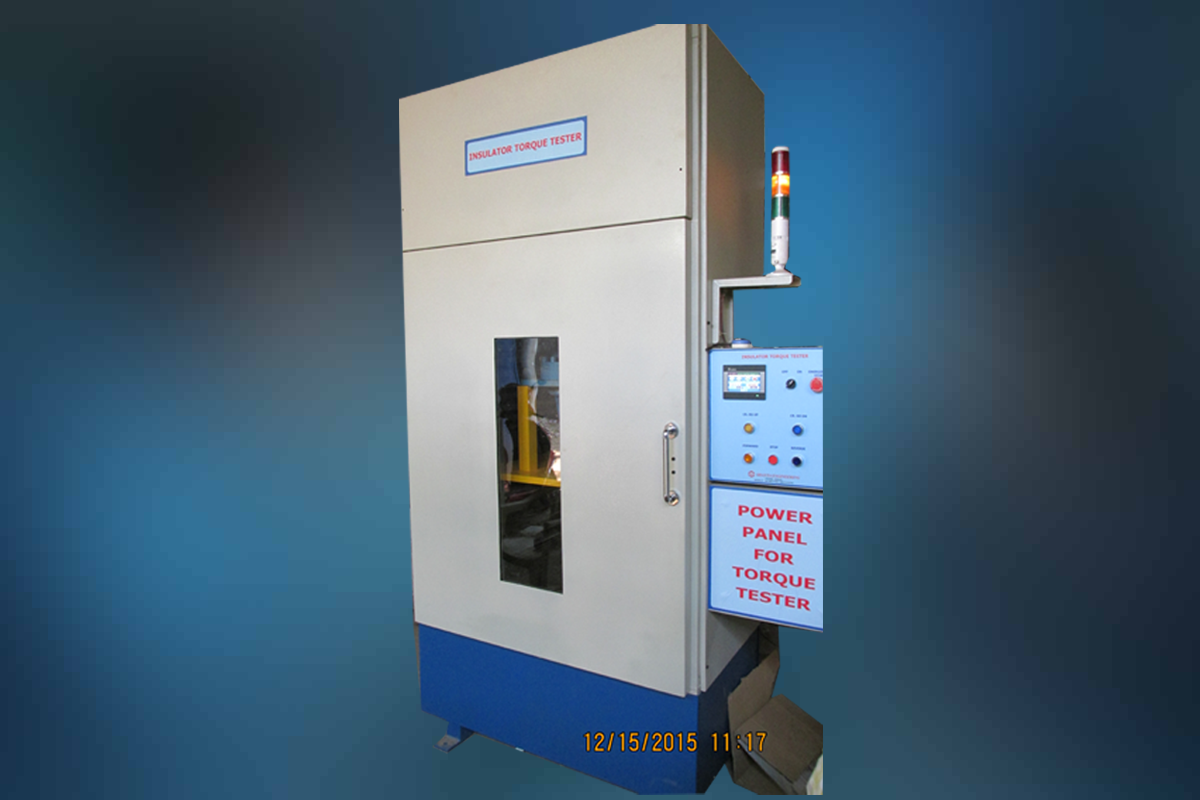

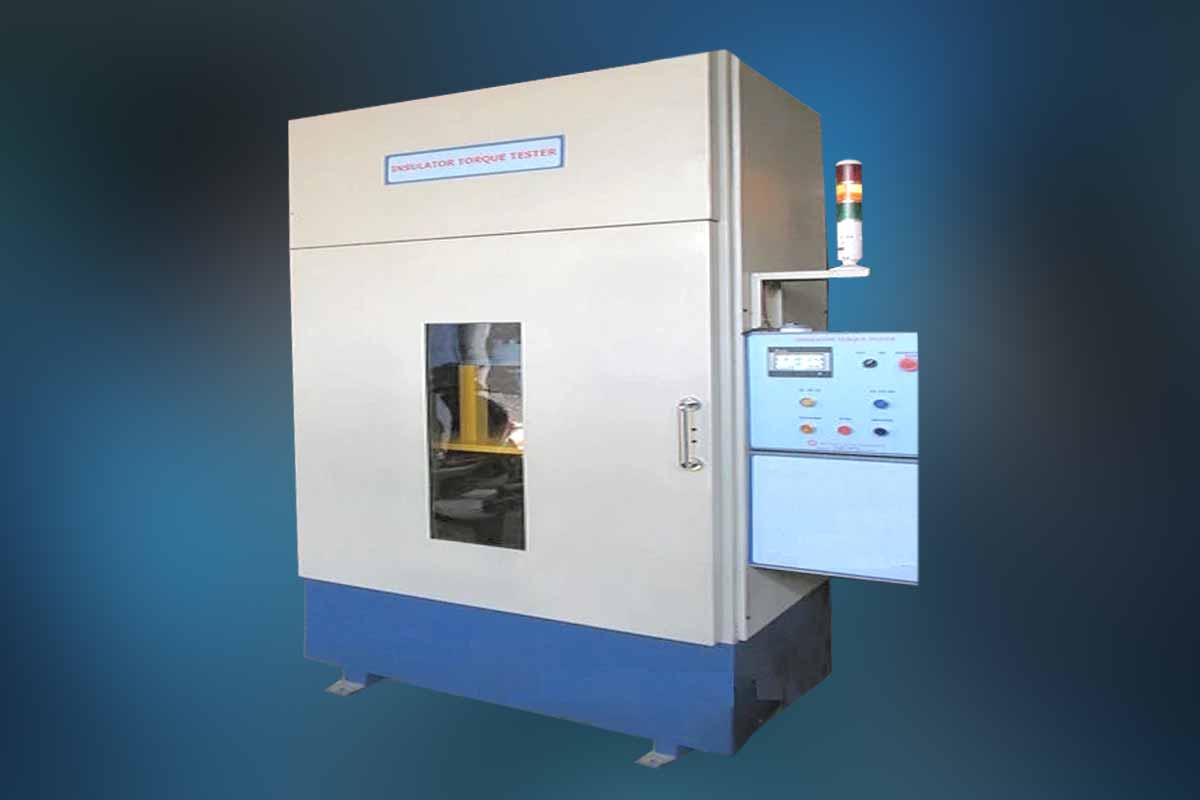

Torque Testing Machine for Insulators
The machine is specially built to test the max. torque an electrical insulator can withstand without breakage.
Key Points - Torque Is a twisting or turning force , used to test strength, tightness, and performance, ensures products are safe, reliable, and meet quality standards.
Technical Specification of Torque Testing Machine
Product Type |
Torque Tester |
Insulator table loading height |
600 mm |
Machine weight |
1200 kgs |
Max. torque |
1000 kg.m at 0.5 rpm |
dimensions |
800 mm length x 450 mm breadth x 2600 mm height |
Insulator table diameter |
400 mm |
Features of Torque Testing Machine . –
- Precise measurement of torque applied on insulators.
- Digital Display of torque
- Machine applies the set torque on the insulator and returns back to zero.
- The machine can accommodate insulators of different heights up to a height of 500mm.
- Max. torque is 1000Kg-m at 0.5 rpm.
- Sturdy design of frame to avoid twisting during testing.
