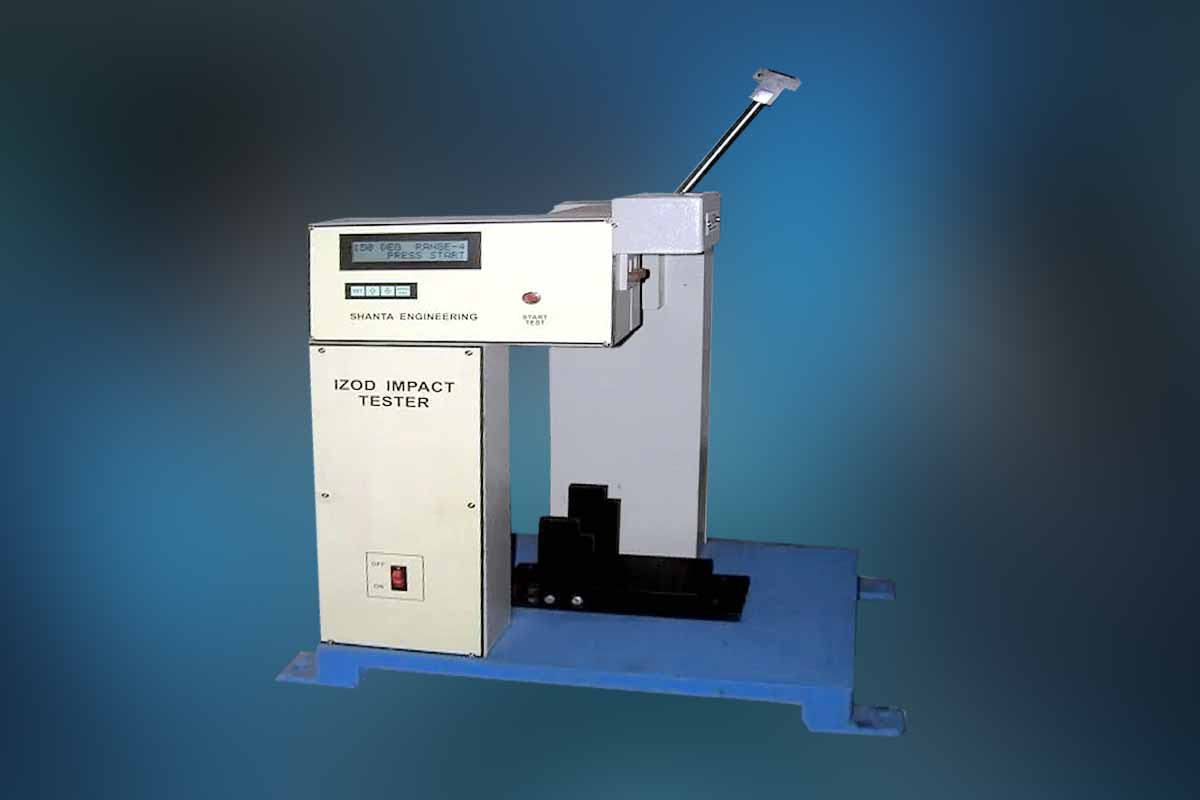

Izod / Charpy Pendulum Impact Tester

Izod/Charpy pendulum Impact Tester is manufactured to perform Izod Impact test as per ASTM D- 256/ISO180 and Charpy impact test as per ASTM D-648/ISO 75. The method of determining impact strength of rigid plastics or reinforced plastics. A notched sample is generally used to determine impact strength. The test determines the amount of energy absorbed by a material during factual.

Features:

• Sixteen characters by 2 lines back lighted LCD display
• Four Keys
• Angle measurement by encoder (500 ppr two output pulses)
• Selection of hammer range (five types)
• Programmable thickness and width of the sample)
• Selectable range of unit to display the break energy in - joules (j), joules/cm^2 (j/cm^2), Joules/metre (j/m) and pounds/square inch (psi)
• Non volatile  memory for storage of selected range, programmed thickness, programmed width and the selected unit for break energy
• Release switch to actuate Electromagnet for the release of the hammer arm  from 150degrees.  to test the sample
• Range change by membrane keys.
• Interchangeability of impact hammers are very easy

Optional:

• Torque wrench
• Charpy hammers
• Notch cutter (Manual)
• Notch cutter (Motorised)
