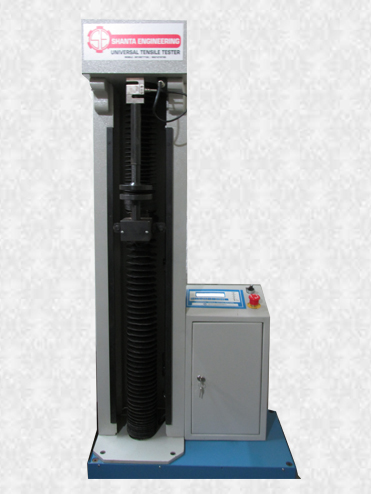

Universal Tensile Testing Machine - Single Column

Universal Tensile Testing Machine - Twin Column

Shanta Engineering Universal Testing Machines are electro mechanical machines with digital display of load & displacement & pulley belt system for changing speeds. The machines are designed for testing various materials like rubber, plastics, cables, leather, paper, plywood and metals. Tension, compression, bend and flexural tests can be performed on these machines with suitable grips and fixtures. The machines are powder coated for elegant look. The critical components are plated for rust prevention and durability.

Main Features :

❖ Selection of different speeds by pulley belt system.
❖ Facility to mount different load cells.
❖ Facility to mount various grips / fixtures for different tests and materials like rubber, plastics, cables, leather, paper, plywood and metals.

Electronic Control Panel :

❖ Front panel membrane type keyboard for test set up.
❖ 7 segment digital display of load and displacement.
❖ Storage of important parameters such as peak load, braking load and max. displacement.
❖ Facility to return of crosshead to home position for next test.

Note :

❖ Over load & over travel protection is standard.
❖ Lower capacity load cells can be used with any machine for better load resolution.
❖ Grips can be selected from wide range available for different application.

Special Options :

❖ Load cells of different capacities are available as optional items.
❖ Displacement resolution of 0.1 mm is optional.
❖ Compression, Bending & flexural attachment to suit specific tests is available as optional.
❖ A.C. Variable speed is available as optional.
❖ P.C. interface is optional.

SPECIFICATIONS UTM SINGLE COLUMN WITH VARIABLE SPEED

MODEL NO.	SET-S-5000N	SET-S-10KN
Max. capacity(Kg)	500 ( 5 KN )	1000 ( 10 KN )
Load Resolution(N) 1:10,000	0.5	1.0
Max. crosshead displacement without grips/fixtures (mm)	900	900
Displacement resolution (mm)	0.2	0.2
Variable speed with the help of A.C. Drive	5mm/min to 100mm/min or 30mm/min to 500mm/min OR
Variable speed with the help of A.C. Servo Drive	1mm/min to 500mm/min
Machine Dimensions w x d x h	600 x 325 x 1800	600 x 325 x 1800
Power Requirement	0.5 H.P.	1.0 H.P.
Power Supply	230VAC±10%, Single Phase, 50Hz with Neutral & Earth

GRIPS

1. SEG 5.1 For dumbell shape specimen of PVC, rubber and polyethylene Inserts knurling.
Max. Specimen size - 35 mm wide x 4 mm thk.

2. SEG 5.2 For strips of PVC Rubber and polyester films. Inserts with rubber lining.
Max. Strip Size - 50 mm wide X 4 mm thk

3. SEG 5.3 For plywood and asbestos. Inserts with fine knurling.
Max. Specimen size = 100 mm wide X 4 mm thk

4. SEG 5.4 For rigid metal wire (1.0 mm dia to 6.0 mm dia )

5. SEG 5.5 For rigid metal strips inserts with knurling.
Max. Strips size = 15 mm wide x 6 mm thk

6. SEG 5.6 For flexible metal wires 20 SWG and finer.

7. SEG 5.7 For flexible rubber cords between 10 to15 mm dia.

SPECIFICATIONS UTM SINGLE COLUMN WITH FIXED SPEED BELT / PULLEY SYSTEM

MODEL NO.	SET-S-5000N	SET-S-10KN
Max. capacity(Kg)	500 ( 5 KN )	1000
Load Resolution(N) 1:10,000	0.5	1.0
Max. crosshead displacement without grips/fixtures (mm)	900	900
Displacement resolution (mm)	0.2	0.2
Test speeds in mm/min	50, 100, 250 & 500	30,50 & 100
Machine Dimensions w x d x h	600 x 325 x 1800	600 x 325 x 1800
Power requirement	0.5 HP	1.0 HP
Power Supply	415VAC±10%, 3 Phase, 50Hz with Neutral & Earth
