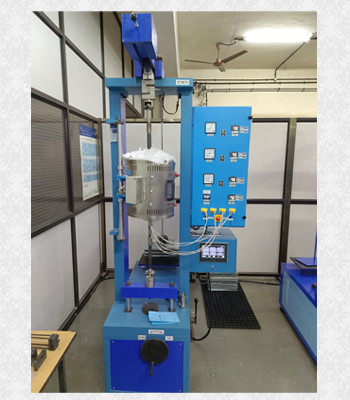

Creep Tester

ELEVATED TEMP. CREEP TESTER

CAPACITY -50kn.

• - The machine will have a lever having a ratio of 1:20 to apply the required load on the sample.


• - Machine frame will be of Structural Steel sufficient enough to take the stress created by 50KN load.


• - Lever position to ZERO can be automatically adjusted with help of a geared motor and screw arrangement. The required signal is generated through a proximity switch.


• - A manual arrangement is also provided to adjust the ZERO position.


• - The machine will be supplied with dead weights as mentioned below.
  10Kgs. - 5 Nos. , 5 Kgs. -5 Nos., 2 Kgs. - 5 Nos. , 1Kgs. - 5 Nos. 0.500Kgs. - 5 Nos.


• - The machine will be supplied with sample holding arrangement and a Furnace which can work up to a temp. of 1200oC


• - Furnace will be provided with six Nos. of thermocouples to note the temperatures at three different portions of the specimen. A suitable control panel will be provided with temp. controllers for three different zones and a timer to record the time during the test .(0 to 9999Hrs.)


• - A suitable data logger and operating software will be provided to log the time and temperature on PC. A graph of time vs elongation will plotted.
